BaseEdge Pro · Baseedge angle meter

Ski & snowboard
base edge

measured to 0.01°.

Electronic dial gauge, hairline straightedge and LED light gap in one instrument. The BaseEdge Pro determines the exact actual baseedge angle of skis and snowboards.

Resolution
0.01°
Resolution
Light gap
LED
Light gap
Battery
Mobile
Battery

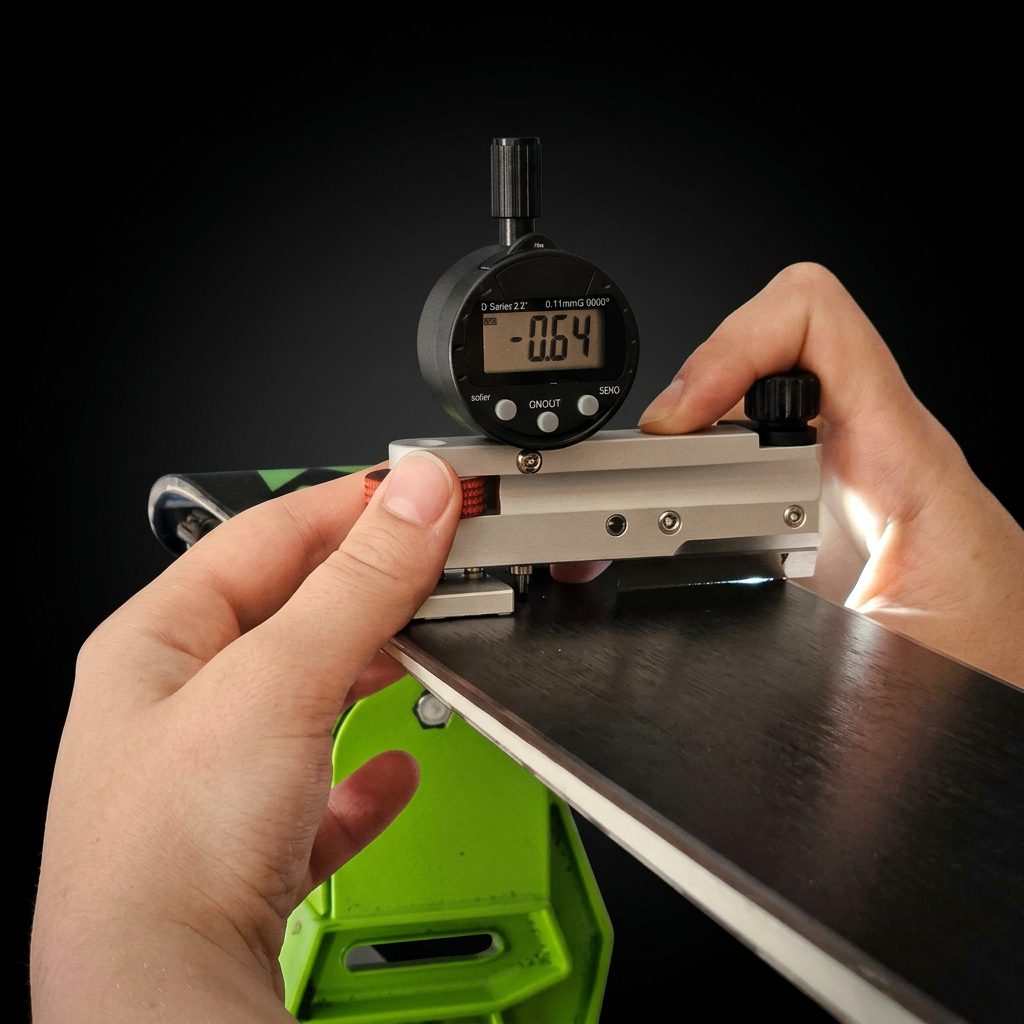

BaseEdge Pro Baseedge angle meter on the edge of a ski, display showing −0.64

Why measure

0.5° or 1.0°? A difference you feel on ice straight away.

The base bevel defines the ski’s responsiveness and the exact point at which the edge engages. A few tenths of a degree decide between aggressive edge bite and forgiving, drift-friendly behaviour. If you don’t measure this angle precisely, you leave the setup to pure chance.

Base bevel and ski behaviour

Direct · early edge gripCalm · forgiving
  • 0.30°–0.50°: very direct
  • 0.50°–0.75°: sporty
  • 0.75°–1.00°: forgiving
  • 1.00°–1.30°: delayed

Please note: these are guide values – the right angle depends on the athlete and on how the side edge is ground. Everyone finds their own combination over time. That makes it all the more important to know it exactly and to hit it again reliably at every service.

Where does the demo ski sit? Try it in the live demo

Too much is too much

A base edge bevelled too far cannot simply be filed back – the whole ski has to be ground flat again. Measure before grinding; if a ski turns well, leave its angle as it is.

Spot the differences

The angle can vary between the two edges and along the length of the ski. You can’t see that with the naked eye – the BaseEdge Pro measures it in seconds.

Quality control

Check in seconds after every service whether the target angle was hit – measured, not felt.

The device

Precision you can hold.

Electronic dial gauge, straight edge and LED in one compact device – for the workshop and the race course. Made in Austria.

Electronic dial gauge
0.01 mm resolution, easy to read on the large display.
Red knurled nut
Fine-tunes the support until no more light shines through.

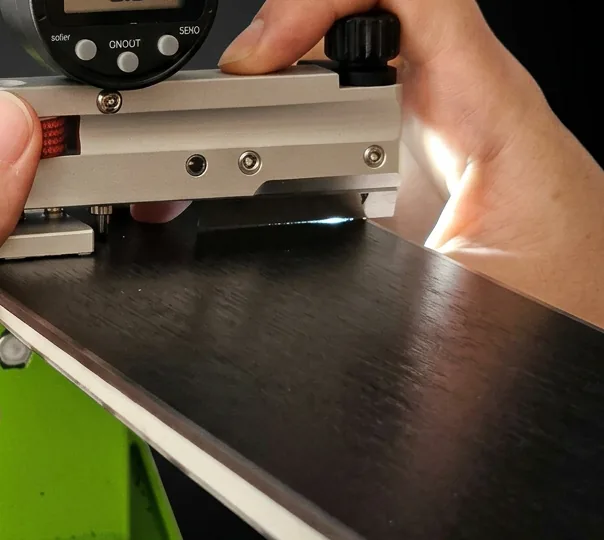

Straight edge with LED
Reveals even the tiniest light gap at the edge.
Battery powered
No cable, no socket – ready to use anywhere.
BaseEdge Pro in studio view on a steel edge, dial gauge reading −0.56

Live demo

Built for the hundredths.

The light-gap method – try it yourself.

Drag the red knurled nut – or use the slider – until no more LED light passes between straightedge and edge.

0.00mmSKI · BASE SIDEEdge light visible0.00mm

Dial gauge in mm · mapping in this demo: 1 mm = 1°. What matters is the light gap above the steel edge; light may still show on the base side.

Light visible: turn further

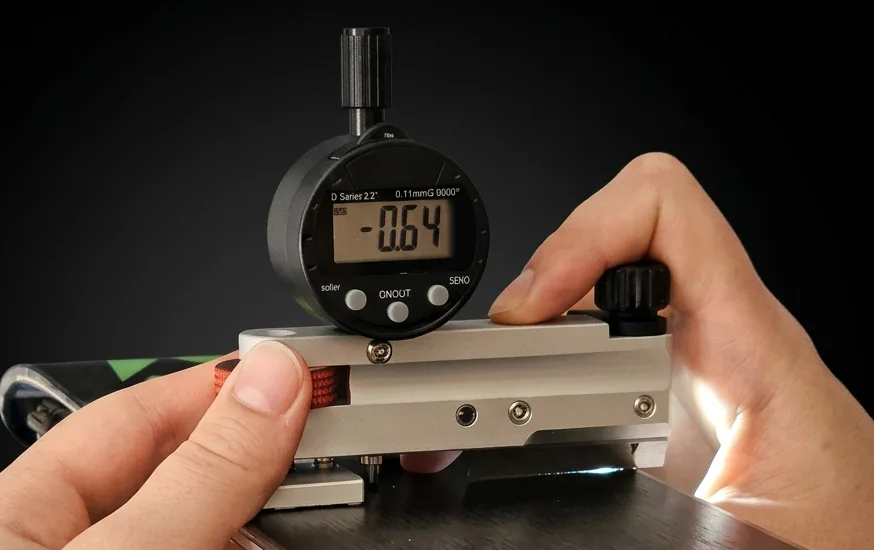

Close-up of the BaseEdge Pro digital display

Large, clear display

Degrees = millimetres – easy to read, in the service workshop or on the side of the slope.

Dial gauge + straightedge

Proven precision instruments, combined in one device.

Built-in LED

Makes even the smallest gap visible – every measurement can be verified by eye.

Knurled nut for mechanical adjustment

Knurled nut

Mechanical adjustment via knurled nut – precise and fast.

Battery powered

No cable, no socket. Workshop, ski service or right at the race course.

Carrying case

Safely stowed

Compact hard case with a custom-cut foam insert – the BaseEdge Pro stays protected and is always ready to hand.

  • Rugged hard shell
  • Custom-cut foam insert
  • Handy for workshop and race course
Closed BaseEdge carrying case with logoOpen carrying case with the BaseEdge Pro in its foam insert

How to use

Four steps to the angle.

Playing the video loads it from YouTube; data is transferred to Google.
  1. 01

    Prepare

    Clamp the ski, clean the base and steel edge, and check that the base is flat.

  2. 02

    Calibrate

    Place the device across the base, raise the support until only the straightedge rests on it, and zero the dial gauge.

    CAD view: BaseEdge Pro during calibration, the straightedge rests flat on the base
    Straightedge flat on the base, marker at the transition to the edge.
  3. 03

    Measure

    Switch on the LED and turn the knurled nut until no light passes between straightedge and edge.

    CAD view: BaseEdge Pro while measuring, the straightedge sits flush on the base edge
    The device tilts by the base bevel angle – the straightedge sits flush on the edge.
  4. 04

    Read

    The value in millimetres equals the angle in degrees. Measure at several points for a reliable result.

Who it’s for

Racing

World Cup teams and racers who need a repeatable setup.

Ski service & retail

Workshops that measure before and after grinding instead of guessing.

Clubs & ambitious skiers

Ski clubs, coaches, junior teams and private racers who prepare their own equipment.

Where to buy

Available from our partners.

The BaseEdge Pro is available from selected dealers – online or in store, where you can try the device in person.

skirennanzug.com

skirennanzug.com

82467 Garmisch-Partenkirchen, Deutschland

Sidecut Tuning

Sidecut Tuning

V8E 0G8 Whistler, BC, Kanada

Norda Ski Tuning Tools

Norda Ski Tuning Tools

Österreich

FAQ

Frequently asked questions.

Question not answered? Get in touch.

Precisely measure the actual base edge angle, set the grinding machine exactly and verify the target angle flawlessly after the service. For a reproducible high-end setup without compromise.
